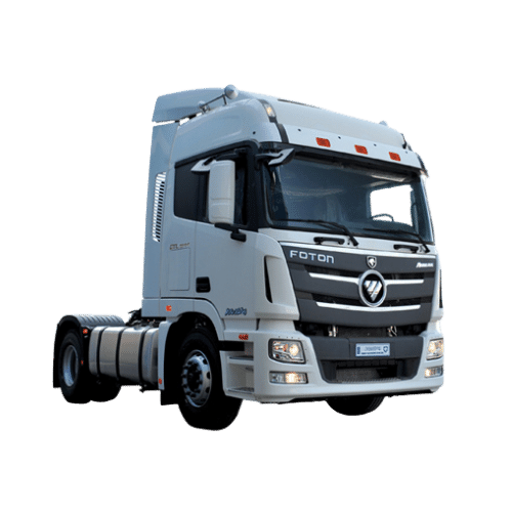

FOTON 430

Capacity:

32 Litr

Quality:

SAE 15W-40 engine oil-CI-4 -CJ-4-CK-4 -

Category:

Diesel Motor Oil

Photon 430 gear AUMAN 430 • 11877 cc CUMMIMS ISGe4-430 engine with EURO4 standard with DPF • It has 437 horsepower, turbocharger and intercooler, it has Adblue SCR direct fuel injection system. • ZF 16S2230TO manual gearbox, which includes 16 forward gears and 2 reverse gears, does not have a retarder

engine oil
Ayoman Fon H 430 engine oil quality level:
• SAE 15W-40 engine oil
• API CI-4 and API CJ-4 and API CK-4 quality levels

Photon 430 engine oil volume:
• Equal to 32 liters
• Buy the 16-22 liter pack
gearbox oil
FOTON 430 gearbox oil quality level:
• SAE 85W-90 gearbox oil and API GL-5 quality level for very hot areas.
SAE 75W-80 gearbox oil and API GL-5 quality level for all regions of the country.
• Photon 430 gearbox oil change time: every 40,000 kilometers or once a year

Photon AUMAN 430 gearbox oil volume:
• Equal to 13.5 to 15 liters
• Front and rear differential oil total 18.5 liters and SAE 85W-90 is recommended.
• Total 33.5 liters are needed for a complete change of the differential oil and gearbox oil every 50,000 km or every year.
Technical specifications of FOTON 430 gearbox:
• Photon 430 gearbox type: manual 16 forward gears and two reverse gears
• Synchronized ZF 16S2230 TO gearbox code (ZF 16 S 2230 TO gearbox)
Photon 430 gearbox is the same as Iveco 440 and Axor gearbox

Recommended oils for Foton 430 manual transmission:
Behran Samand special gearbox oil
• TOTAL EP-B gearbox oil
• Shell Spirax MB gearbox oil
• MOBILUBE HD-A gearbox oil
• Castrol EPX gearbox oil
brake oil
Two independent circuit pneumatic brakes, disc front, cup rear
Pneumatic parking brake operating on the rear wheels
Auxiliary brake: two-stage Jacob motor brake equipped with ABS ASR
Hydraulic oil
Pneumatically adjustable hydraulic steering wheel in two directions, ZF 8098 model
